Computer Networking Routing

End-to-end routing

Approaches

  • Flooding. As its name, packets go anywhere (it may form loops).
  • Sourcing routing. Source router put the full path (from source to destination) in packets.
  • Forwarding table.
  • Spanning tree

Other types of routing

  • Multipath
    • Is when we spread the packets over multiple links, in order to spread the load as evenly as we can accross the network.
  • Multicast
    • Opposite to unicast

Metrics

And there are many different metrics to determine the best paths:

  • Min distance
  • Min hop-count
  • Min delay
  • Max throughput
  • Least-loaded path
  • Most reliable path
  • Lowest cost path
  • Most secure path

Shortest path spanning tree

Distributed Bellman-Ford Algorithm

We can learn this with a concrete example:

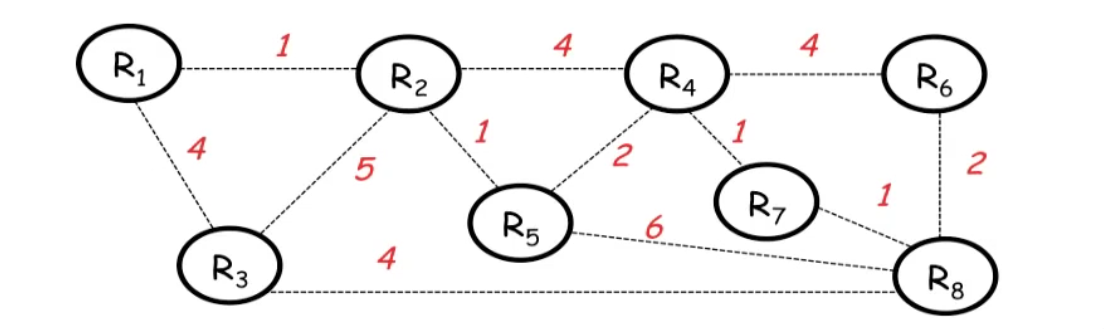

bellman-ford-example A bellman ford example

Assume routers know cost of link to each neighbor.

Router \(R_i\) maintains value cost \(C_i\) to reach \(R_8\). Vector \(C = (C_1, C_2, C_3, \dots, C_7)\) is the distance vector to \(R_8\). Initially, set \(C = (\infty, \infty, \dots, \infty)\)

  1. After \(T\) seconds, \(R_i\) sends \(C_i\) to its neighbors.
  2. If \(R_i\) learns lower cost path, update \(C_i\)
  3. Repeat.

A problem with bellman-ford: “Bad news travels slowly”

This problem is also known as Counting to Infinity Problem.

This problem occurs when some links break. For example, say we have a graph, where \(V = \{ R_1, R_2, R_3 \}\), and \(E = \{ (R_1 \to R_2),\ (R_2 \to R_1),\ (R_2 \to R_3) \}\) . Afterwards, distance vector \(C = (2, 1, 0)\) (to \(R_3\)).

When \((R_2 \to R_3)\) breaks, \(C\) will be updated to \((2, \infty, 0)\).

From then on, the following two events takes place simultaneously:

  • \(R_1\) reports to \(R_2\) that \(R_3\) is at a cost of \(C_1 + 1 = 3\). So update \(C_2 \gets 3\).
  • \(R_2\) reports to \(R_1\) that \(R_3\) is unreachable. And \(C_1\) will be updated to \(\infty\).

After that, now comes that \(C = (\infty, 3, 0)\).

Again, \(C = (4, \infty, 0)\).

So eventually, the distance vector will keep being updated forever!

Solutions:

  • Set infinity = “some small integer” (e.g. 16). Stop when count = 16.
  • Split Horizon: Because \(R_2\) received lowest cost path from \(R_3\), it does not advertise cost to \(R_3\).
  • Split-horizon with poison reverse: \(R_2\) advertises infinity to \(R_3\)

Bellman Ford in practice

Bellman-Ford algorithm is an example of Distance Vector algorithm.

It was used in the first Internet routing protocol, called Routing Information Protocol (RIP).

It requires little computation on the routers, is distributed, and will eventually converged.

Dijkstra

This algorithm is almost the same as what you learned in Data Structure & Algorithm class, except that:

  • No min-heap-optimization. Nodes pull together to calculate the result, no such a ‘super’ node to process all the nodes.
  • Everything is calculated from scratch every time there’s a change.

Dijkstra in practice

Dijkstra is an example of a link state algorithm.

  • link state is known by every router.
  • Each router finds the shortest path spanning tree to every other router.

It is the basis of Open Shortest Path First (OSPF) a very widely used routing protocol.

Interior Gateway Protocol (IGP)

RIP, OSPF and ISIS are all IGP. They cooperate with BGP, offering AS route messages.

Exterior Gateway Protocol (EGP)

Today, when people say EGP, they usually mean BGP, which is the de facto Exterior Gateway Protocol on the Internet.

Border Gateway Protocol (BGP)

BGP is the modern, scalable, and flexible protocol used to exchange routes between ASes.

All AS’s in the Internet MUST connect using BGP-4.

BPG

  • Is a path vector algorithm, allowing loops to be detected easily.
  • Has a rich and complex interface to let AS’s choose a local, private policy.
    • Each AS decides a local policy for traffic engineering, security and any private preferences.

iBGP (Internal BGP) and eBGP (External BGP)

In eBGP, if one AS receives updates (usually in the form of To reach x.y.z.w/n, go through [ASaaa, ASbbb, ASccc, ..., ASxxx]), it appends itself (say ASyyy) to the list, like To reach x.y.z.w/n, go through [ASyyy, ASaaa, ASbbb, ASccc, ..., ASxxx].

See more examples in BGP example and https://chatgpt.com/s/t_6850fc64a8948191887e5740c07fe17f.

In iBGP, one router advertises information it learned from other ASes to all other routers within the same AS.

Rules routers follow in iBGP:

  • iBGP routers do NOT advertise routes learned from one iBGP peer to another iBGP peer to prevent loops.
  • Therefore, all iBGP routers must be fully meshed (each peer connected to every other peer), OR use route reflectors or confederations to scale.

Four types of messages in BGP

  • Open: Establish a BGP session.
  • Keep-Alive: Handshake at regular intervals.
  • Notification: Shuts down a peering session.
  • Update: Announcing new routes or withdrawing previously announced routes.

RIP is built on top of UDP:520.

OSPF is built on top of IP:89.

BGP is built on top of TCP:179.
